Tekton SKT05303 56 Pc 1/4 Inch Drive 6 Pt SAE / Metric Socket & Ratchet Set

The Tekton SKT05303 56 Pc 1/4 Inch Drive 6 Pt SAE / Metric Socket & Ratchet Set is a comprehensive and versatile tool set designed for automotive and industrial applications. With both SAE and metric sizes included, this set offers a wide range of options for various nuts and bolts. The 6 pt design allows for high torque application with a compact size, making it easy to work in tight spaces. The ratchet included in the set provides added convenience and flexibility, ensuring a smooth and efficient work flow. Trusted for quality and durability, the Tekton brand is a reliable choice for professionals and DIY enthusiasts alike.

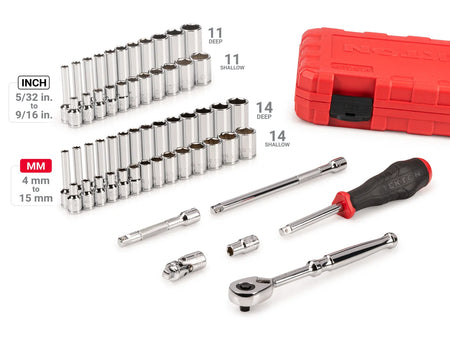

Set Includes:

IN Shallow Sockets
5/32, 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16, 1/2, 9/16 in. (11 sizes)

IN Deep Sockets
5/32, 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16, 1/2, 9/16 in. (11 sizes)

MM Shallow Sockets
4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 mm (14 sizes)

MM Deep Sockets
4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 mm (14 sizes)

Details

Large, Stamped Markings

• Permanently impressed into the material by a roll-stamp die
• As large as possible while still being readable along the socket's curved surface
• Clearly visible size numbers with extra-deep outline

Fully Stepped Shoulders

Narrowed diameter stretches to the base of the socket on small, deep-length sizes. This provides greater reach into tight, recessed areas.

Exterior and Interior Finishes

• The exterior is chrome-plated to resist corrosion and wipe clean to a mirror finish
• The interior is protected against corrosion with chrome plating that is supplemented with a clear coat or painted finish where needed for full coverage

6-Point Socket Opening

Provides an exact fit and maximum contact for hex fasteners.

Prevents Fastener Round-Off

Radiused corners prevent fastener round-off by applying force to a fastener’s flat sides, rather than its corners.

Secure Drive Tool Engagement

Detent grooves and beveled edges provide a smooth and secure connection with the drive tool.

High Torque Strength

Meets minimum value of 1.2 times the ANSI standard for Proof Torque. Verified by a single-cycle test that applies torque until specified value is reached without failure or permanent deformation.

90-Tooth Ratchet

• 4-degree swing arc
• Ultra-compact head is reduced in all dimensions
• Quick-release drive locks sockets onto tang and releases with the press of a button

View Ratchet

Included Accessories

3 and 6 Inch Extensions

Reach past obstructions and into tight, narrow spaces.

Universal Joint

Reach around obstructions and access fasteners at an angle.

Spinner Handle

Attach sockets to the spinner handle and use it like a nut driver.

Magnetic Hex Bit Holder

Adapt any 1/4 inch hex shank bit to 1/4 inch drive ratchets, driver handles, and other drive tools.

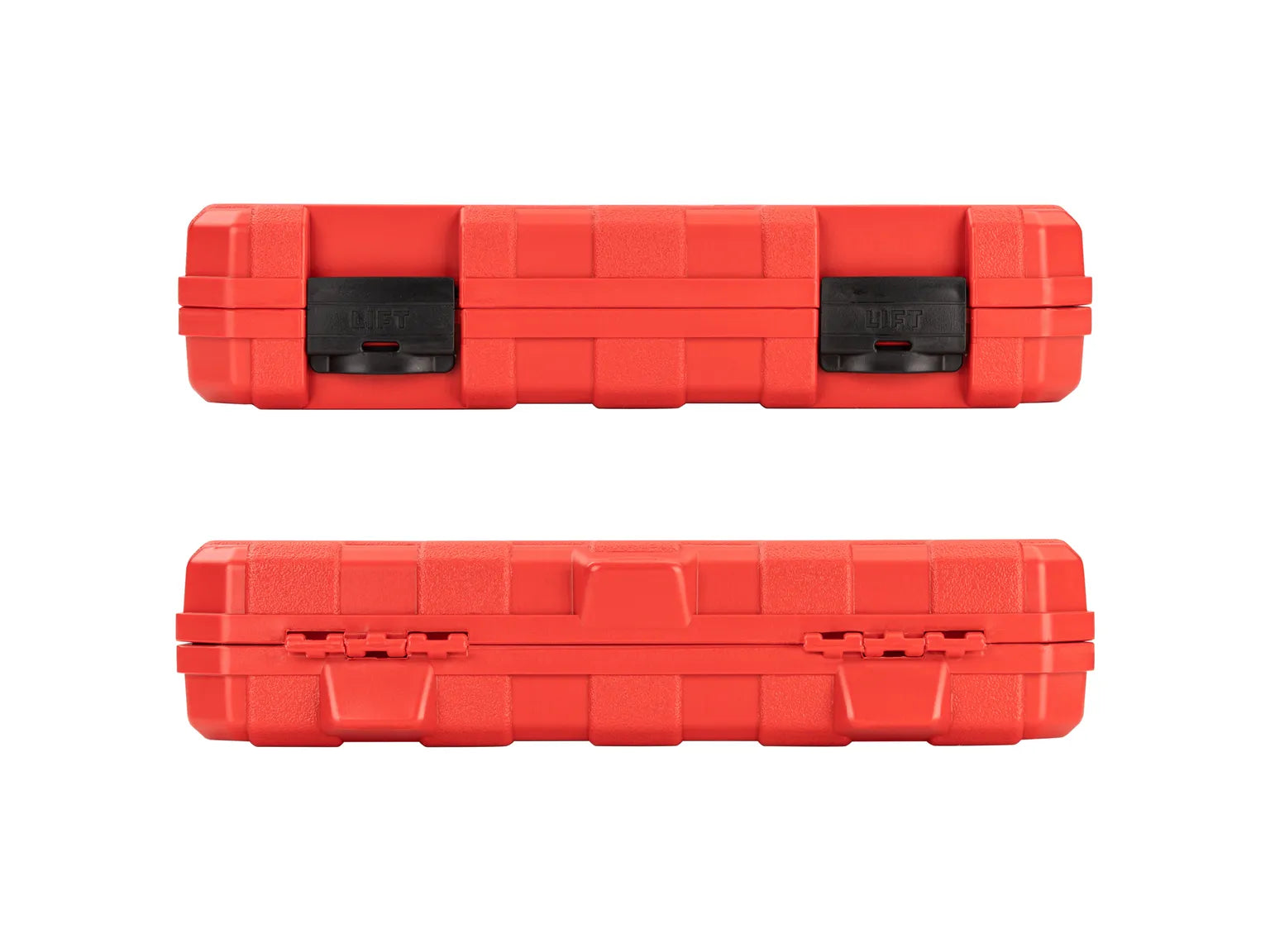

Carrying Case

• Resilient high-density polyethylene material withstands exposure to common lubricants, fuels, and solvents
• Strong latches and metal hinge pins
• Molded size markings for each tool inside the case

---

Specifications

1/4 Inch Drive Shallow and Deep 6-Point Socket and Ratchet Set with Case, 56-Piece (5/32-9/16 in., 4-15 mm)

1/4 Inch Drive Shallow and Deep 6-Point Socket and Ratchet Set with Case, 56-Piece (5/32-9/16 in., 4-15 mm) 1/4 Inch Drive x 5/32 Inch Shallow 6-Point Socket 1/4 Inch Drive x 3/16 Inch Shallow 6-Point Socket 1/4 Inch Drive x 7/32 Inch Shallow 6-Point Socket 1/4 Inch Drive x 1/4 Inch Shallow 6-Point Socket 1/4 Inch Drive x 9/32 Inch Shallow 6-Point Socket 1/4 Inch Drive x 5/16 Inch Shallow 6-Point Socket 1/4 Inch Drive x 11/32 Inch Shallow 6-Point Socket 1/4 Inch Drive x 3/8 Inch Shallow 6-Point Socket 1/4 Inch Drive x 7/16 Inch Shallow 6-Point Socket 1/4 Inch Drive x 1/2 Inch Shallow 6-Point Socket 1/4 Inch Drive x 9/16 Inch Shallow 6-Point Socket 1/4 Inch Drive x 5/32 Inch Deep 6-Point Socket 1/4 Inch Drive x 3/16 Inch Deep 6-Point Socket 1/4 Inch Drive x 7/32 Inch Deep 6-Point Socket 1/4 Inch Drive x 1/4 Inch Deep 6-Point Socket 1/4 Inch Drive x 9/32 Inch Deep 6-Point Socket 1/4 Inch Drive x 5/16 Inch Deep 6-Point Socket 1/4 Inch Drive x 11/32 Inch Deep 6-Point Socket 1/4 Inch Drive x 3/8 Inch Deep 6-Point Socket 1/4 Inch Drive x 7/16 Inch Deep 6-Point Socket 1/4 Inch Drive x 1/2 Inch Deep 6-Point Socket 1/4 Inch Drive x 9/16 Inch Deep 6-Point Socket 1/4 Inch Drive x 4 mm Shallow 6-Point Socket 1/4 Inch Drive x 4.5 mm Shallow 6-Point Socket 1/4 Inch Drive x 5 mm Shallow 6-Point Socket 1/4 Inch Drive x 5.5 mm Shallow 6-Point Socket 1/4 Inch Drive x 6 mm Shallow 6-Point Socket 1/4 Inch Drive x 7 mm Shallow 6-Point Socket 1/4 Inch Drive x 8 mm Shallow 6-Point Socket 1/4 Inch Drive x 9 mm Shallow 6-Point Socket 1/4 Inch Drive x 10 mm Shallow 6-Point Socket 1/4 Inch Drive x 11 mm Shallow 6-Point Socket 1/4 Inch Drive x 12 mm Shallow 6-Point Socket 1/4 Inch Drive x 13 mm Shallow 6-Point Socket 1/4 Inch Drive x 14 mm Shallow 6-Point Socket 1/4 Inch Drive x 15 mm Shallow 6-Point Socket 1/4 Inch Drive x 4 mm Deep 6-Point Socket 1/4 Inch Drive x 4.5 mm Deep 6-Point Socket 1/4 Inch Drive x 5 mm Deep 6-Point Socket 1/4 Inch Drive x 5.5 mm Deep 6-Point Socket 1/4 Inch Drive x 6 mm Deep 6-Point Socket 1/4 Inch Drive x 7 mm Deep 6-Point Socket 1/4 Inch Drive x 8 mm Deep 6-Point Socket 1/4 Inch Drive x 9 mm Deep 6-Point Socket 1/4 Inch Drive x 10 mm Deep 6-Point Socket 1/4 Inch Drive x 11 mm Deep 6-Point Socket 1/4 Inch Drive x 12 mm Deep 6-Point Socket 1/4 Inch Drive x 13 mm Deep 6-Point Socket 1/4 Inch Drive x 14 mm Deep 6-Point Socket 1/4 Inch Drive x 15 mm Deep 6-Point Socket 1/4 Inch Drive x 3 Inch Extension 1/4 Inch Drive x 6 Inch Extension 1/4 Inch Drive Universal Joint 1/4 Inch Drive x 1/4 Inch Magnetic Hex Bit Holder Socket 1/4 Inch Drive High-Torque Spinner Handle 1/4 Inch Drive x 6 Inch Quick-Release Ratchet

Country of Origin	Sockets, accessories, ratchet, spinner handle blade, and case made in Taiwan. Spinner handle molded in USA.
Item Weight	4.67 lb.
